Side-Channel Attacks in SDNs

Comprehensive survey of side-channel attack vectors in Software-Defined Networks, submitted to ACM Computing Surveys.

A systematic literature survey co-authored with Prof. Zhiyong Shan, currently under review at ACM Computing Surveys.

SDN Architecture

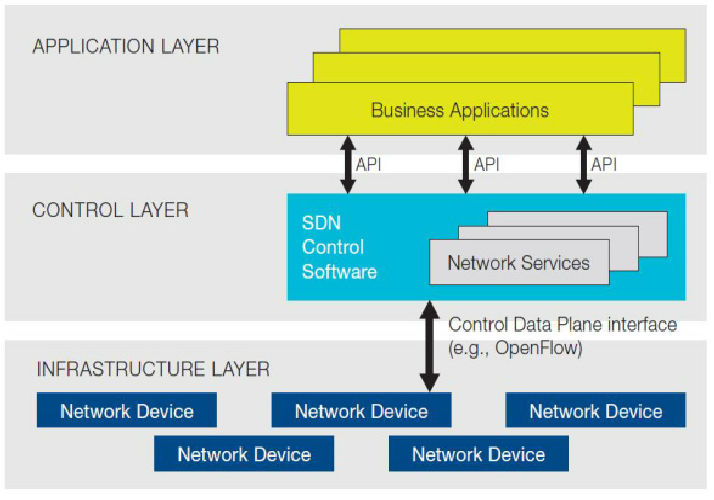

SDN architecture (Open Networking Foundation): decoupled control plane (controller) and data plane (switches), creating new side-channel attack surfaces.

Attack Surface Summary

Attack Class Vector Target Mitigation Gap
Control-plane timing leak First-packet round-trip time Flow-rule existence Partial (randomized delays)
Flow-table covert channel TCAM capacity exhaustion Cross-tenant traffic inference Open problem
Controller load oracle High-rate packet-in flooding Concurrent flow state Partial (rate limiting)
Topology fingerprinting Probe packet timing Network topology Limited coverage

Key Findings

Software-defined networking creates three novel side-channel surfaces absent from traditional networks:

  1. Control-plane timing leaks — the round-trip time of a first-packet lookup reveals whether a flow rule exists, enabling topology fingerprinting without breaking encryption.
  2. Flow-table covert channels — TCAM capacity exhaustion allows a malicious tenant to infer other tenants’ traffic across isolation boundaries.
  3. Controller load oracles — saturating the packet-in queue enables inference about concurrent flow state.

Status. Under review at ACM Computing Surveys (2025).
